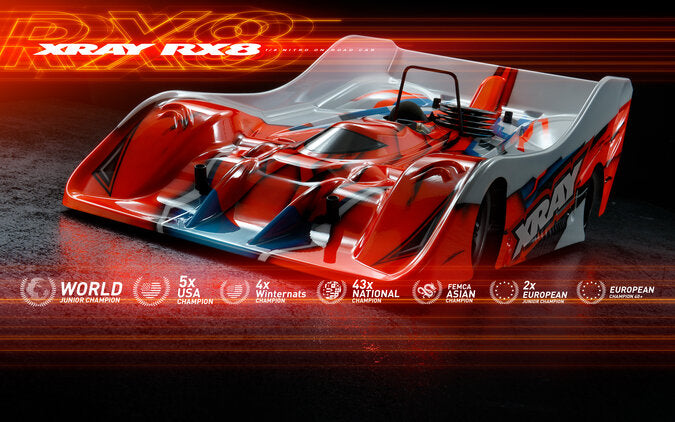

XRAY RX8'26 - 1/8 Nitro On-Road Car

XRAY RX8'26 All-new features - Part 1 The all-new chassis design features new flex characteristics & lowered CG All-new chassis uses M4 screws throughout, for quick and reliable assembly and maintenance Chassis sides and engine position were milled down for laydown servo mounting & lowered engine position The rear solid axle & front one-way outdrives are lightened to reduce drivetrain rotational mass The front aluminum one-way axle is now hard coated for improved durability & reliability CVD rear driveshafts are matched to the lightweight aluminum wheel axles and super lightweight rear solid axle 2nd gear shaft has been strategically lightened to reduce rotating mass, and heat treated for maximum lifespan All-new 3 ball-bearing equipped belt tensioners increase reliability and prevent belt skipping Piston brake system features an aluminum stand, and brake pads with special material, glued in-house New adapter for brake disc and pulley is made from a hard coated, lightweight aluminum 7075 T6 material New lightweight aluminum 2nd gear drum features more precise bearing holes New aluminum engine mounts are strengthened for more reliable engine mounting Front left aluminum bulkhead features stronger M4 set screw muffler mount for more security Aluminum 2nd speed shaft stand allows for attachment of the carbon plate for the middle belt tensioner The aluminum rear lower arm holder now features M4 screws for more reliable and secure installation The new carbon radio plate features a unique flex system with two flex alternatives The new radio plate uses a laydown throttle servo configuration to lower CG A new linkage system is mounted on top of the radio plate which allow the servo to be installed super low on the chassis to lower CG Composite holder for throttle & brake linkages uses steel bushings for secure attachment to the aluminium horns, for minimum play New aluminum radio plate holders are designed for use in conjunction with the radio plate to improve multi-flex functions One-piece aluminum servo holders ensure reliable mounting of the servo onto the radio plate The servo saver stand uses a steel washer and centering bushing to adjust front flex XRAY RX8'26 All-new features - Part 2 Front middle shaft holder features integrated ball-bearing equipped belt tensioners for the front and side belts. The rear upper arm is extended for improved ball joint support. The one piece carbon downstop limiters are mounted directly onto the front arm for more precise downstop adjustment and reduced unsprung weight Carbon shock mounts have been redesigned to be super lightweight to reduce unsprung mass The redesigned upper arm holder features a guide for the ball-bearing equipped body holder Rear body holder is now ball-bearing equipped for near friction-less operation The carbon rear shock absorber holder features new shock positions that improves the stability of the car The front carbon upper bracket is mounted to center stand for independently moving bumper holder that will not deform in crashes Carbon steering plates are super light and strong to reduce unsprung mass and improve reliability Tighter fitment of the aluminium anti-rollbar...
