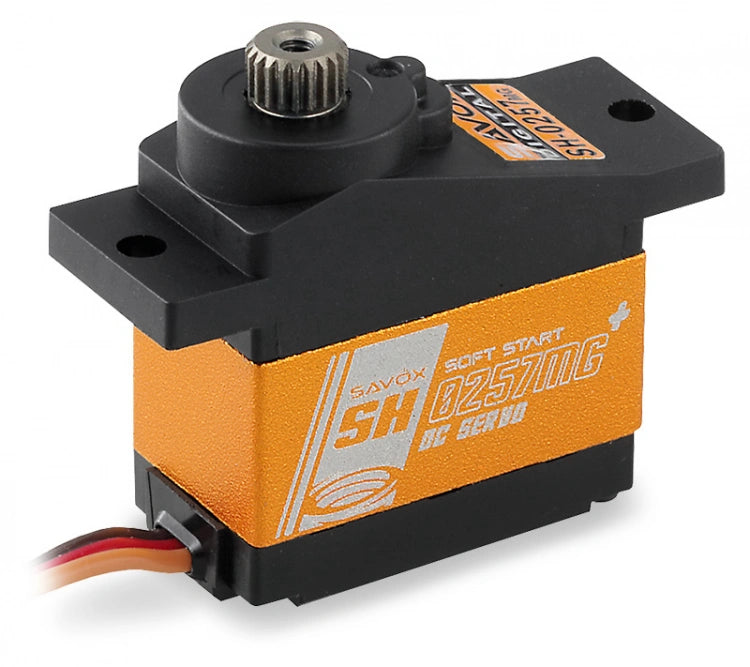

SAVÖX SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

SAVÖX SH-0257MGPLUS - Metal-Geared Micro Servo The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.Features: New: Soft Start New: Sanwa SSR compatible Metal gear train ensures durability and longevity Aluminum middle case allows for cooler operating temperatures Ideal for small planes and 450 size helicopters Specifications: Torque @4.8V: 1.8kg/cm Torque @6V: 2.2kg/cm Speed @4.8V: 0.13 sec/60 deg Speed @6V: 0.09 sec/60 deg Dimensions L x W x H: 22.8 x 12.0 x 25.4mm Weight: 14g Technical Details: Operating Temperature: -10° to 50°C Running Current (no load): 150mA @4.8V, 180mA @6.0V Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 250 ± 5mm Output Gear Spline: 21 Tooth Bearings: 1BB Operating Travel: 90° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 700 → 2300 µ second Maximum Travel: Appx 150° (700 → 2300 µ second) Refresh Rate: 240 Hz Motor Type: Brushed
