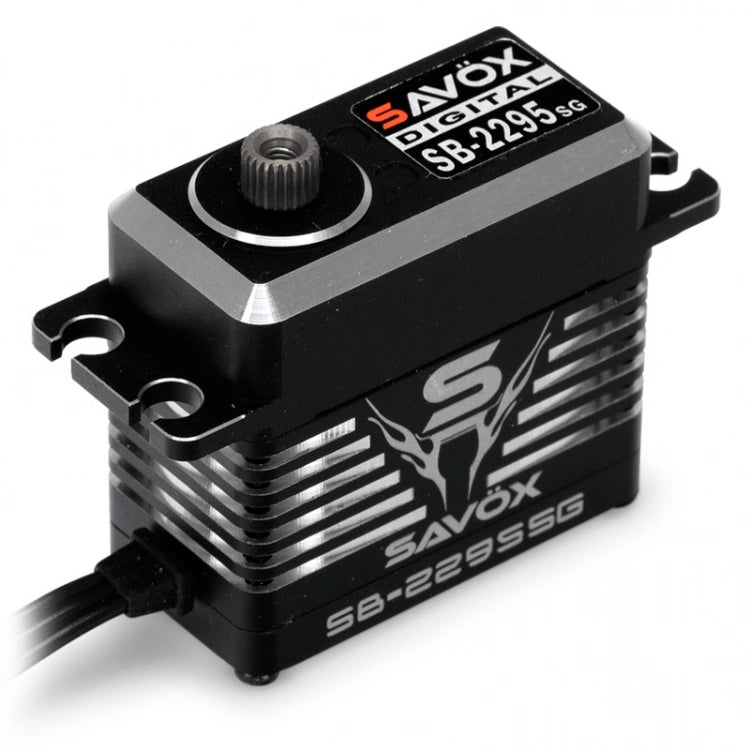

SAVÖX SB-2295SG Servo 32Kg 0,06s HV Alu Brushless

SAVÖX SB-2295SG - High Voltage Brushless Steel-Geared Monster Torque Servo The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos. Perfect when you need a powerful and very fast high voltage brushless servo with a aluminium case in application such as 3D helicopters etc.Features: High Voltage Full Aluminum Case 3 Precision Ball Bearings Unique steel gears Specifications: Torque @ 6V: Torque @ 7.4V: 32kg/cm Torque @ 8.4V: 40kg/cm Speed @ 6V: Speed @ 7.4V: 0.06sec/60 deg Speed @ 8.4V: 0.05sec/60 deg Dimensions L x W x H: 40.3 x 20.2 x 38.7mm Weight: 79g Technical Details: Operating Temperature: -10° to 50°C Running Current (no load): 180mA @6.0V, 220mA @7.4V Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 300 +/- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Brushless
