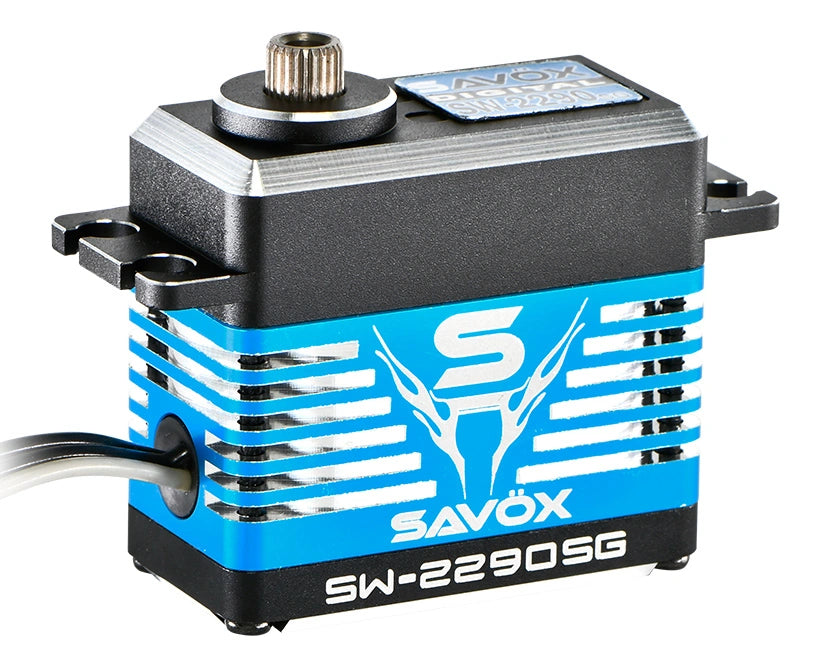

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

SAVOXSpecifications: Line: BLUE LINE Application: CAR/BOAT Servo Size: Standard Operating Voltage: 6.0V-8.4V Speed @ 6.0V: 0.16s/60° Torque @ 6.0V: 45.0kg/cm Speed @ 7.4V: 0.13s/60° Torque @ 7.4V: 55.0kg/cm Speed @ 8.4V: 0.11s/60° Torque @ 8.4V: 70.0kg/cm Amplifier Type: Digital Controller Motor Type: Patented Lightweight Brushless Case Type: Aluminum Protection: Waterproof (IP67) Dimensions (LxWxH): 41x21x39.9mm Weight: 88g Gear Type: Special Steel Compatibility: Normal PCB Board: 12bit 4096, Softstart, Lock protection Horn Gear Spline: 25T (Φ6) Rotating Direction: Counterclockwise (when 1000→2000μsec) Max Travel: ~130° (when 900→2100μsec) Operating Travel: 100° (when 1000→2000μsec) Neutral Position: 1500μsec Bearing: 3x Ball Bearings Potentiometer: VR Cable Diameter: 22AWG Cable Length: 450mm ±5 mm Connector: JR Stall Current @ 6.0V: 7200mA Operating Current @ 6.0V: 200mA Stall Current @ 7.4V: 9200mA Operating Current @ 7.4V: 220mA Stall Current @ 8.4V: 10500mA Operating Current @ 8.4V: 250mA Idle Current: 5mA Dead Band Width: 3-5μsec Frequency Range: 50-360Hz Control System: Pulse Width Modification Operating Temperature: -10°C to 50°C
